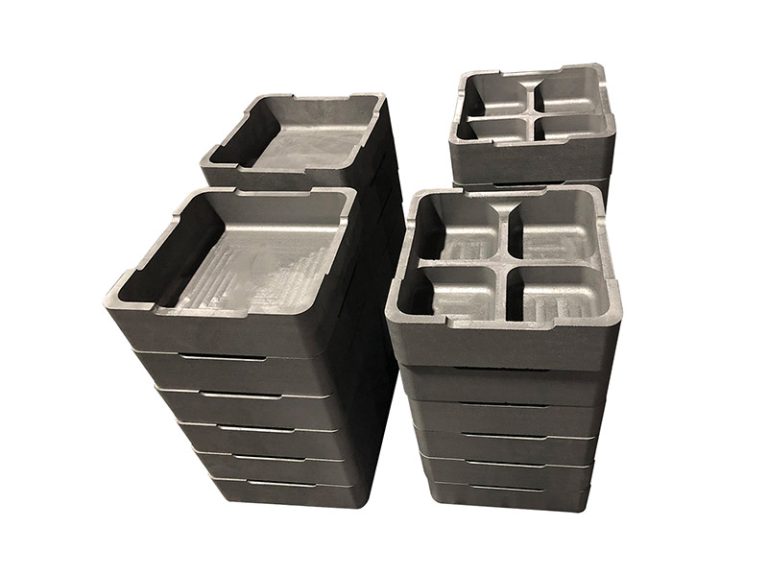

Four-gang High Purity Graphite Sagger

Graphite sagger is made of special high-purity, high-strength, high-density graphite material, through high-precision CNC machining equipment, used for sintering lithium iron phosphate material.

Description

The four-cell graphite crucible is a high-performance graphite product that is meticulously designed and manufactured. It is made of high-quality graphite material and features a unique four-cell structure. Each cell is independent yet interrelated. The overall shape is regular, and the craftsmanship is exquisite. The surface is specially treated, smooth and flat, with a hard texture that can withstand the challenges of extreme environments such as high temperatures and high pressures.

Features

01
Excellent thermal conductivity: Graphite itself has outstanding thermal conductivity, which enables rapid and uniform heat transfer, improving heating efficiency.
02
Exceptional high-temperature resistance: It can operate stably at temperatures up to several thousand degrees Celsius without deformation or cracking.
03
Strong chemical stability: Resistant to acid and alkali corrosion and is not prone to reactions with other chemical substances.
04
High strength and hardness: Capable of withstanding considerable pressure and impact without damage.
06
Precise four-cell design: Facilitates the classified storage and processing of different materials, enhancing work efficiency and product quality.

Applications

01
Metallurgical industry: Used in the smelting, refining, and casting processes of metals, such as the production of steel, aluminum, copper, and other metals.
02
Electronics industry: In semiconductor manufacturing, it is used for the heat treatment and diffusion processes of wafers.
03
Chemical industry: Serves as a chemical reaction vessel for high-temperature and high-pressure chemical reactions.
04
Ceramic industry: Utilized in the firing of ceramics to ensure the quality and performance of ceramic products.

The four-cell graphite crucible plays a vital role in numerous industrial fields due to its superior performance and unique design. It not only improves production efficiency and product quality but also reduces production costs and energy consumption, bringing significant economic and social benefits to the related industries. With continuous technological advancements and the expansion of application fields, the market prospects of the four-cell graphite crucible will be even broader.

Specifications

Material
High quality graphite
Capacity
Accept customization
Size
Accept customization
Compatibility
Suitable for all kinds of furnaces and melting devices

Parameter

TypeBulk DensitySpecific ResistivityHeat Conductivity(100℃)Coefficient of Thermal ExpansionShore HardnessFlexural StrengthCompressive StrengthModulus of ElasticityPorosityAshGranularityRecommended
g/cm³μQ·mW/m.kHSDHSDMpaMpaGpa%PPMμmApplications
YT-WX-41.75 8-11110-1205.46 4265389175013-15Common (use)
YT-WX-51.85 8-10130-1404.75 48854611.8135013-15Common (use)
YT-WX-61.90 8-9130-1404.80 5395551211508-10Metallurgy
YT-WX-71.82 11-13110-1205.80 6551115121250/Common (use)
YT-H-51.68 13-1580-1005.80 6080388.818508-10EDM
YT-H-71.85 11-13100-1205.90 68135621212507EDM & Photovoltaic
YT-H-81.90 11-13110-1205.85 72160701311505EDM & Hot Press
YT-BD9001.83 8-111204.90 508745111350/Hot Bending Glass: Automotive
YT-BD9501.85 8-111305.00 5110055131350/Hot Bent Glass: Rear Covers
YT-BD9601.79 8-111005.30 5510160121450/Hot Bent Glass: Front Cover
RW8001.85 11-13956.00 7014070121550/Semiconductor
RW8101.82 11-13956.10 7014568111550/Semiconductor
RW8601.82 12-15906.20 7015065131550/Semiconductor
